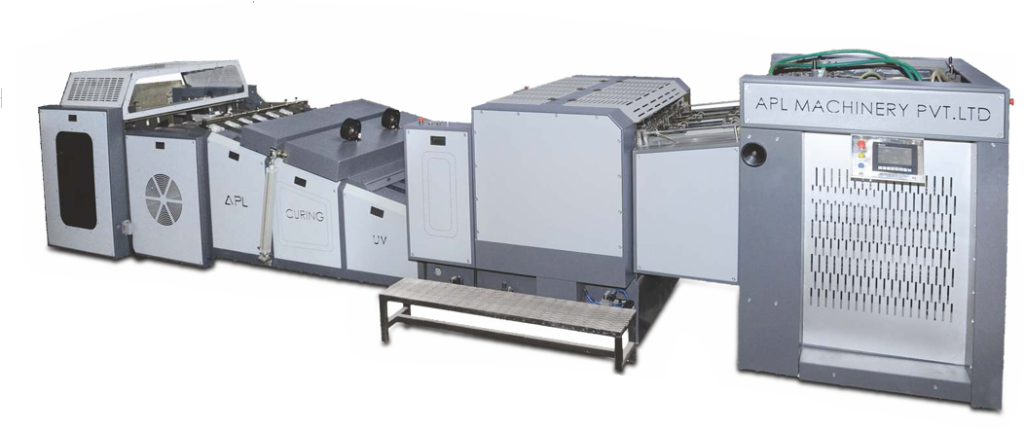

APL-UV 2030 FULLY AUTOMATIC LED UV COATING & CURING MACHINE (SPOT & FULL) for Gripper Model
Fully automatic Coating & Curing machine capable of Full & Spot coating with UV dryer and IR dryer with hot air for UV and Aqueous curing, respectively, comes with the following features: Precise registration at high speed using precision adjustable side and micro adjustable front lay.
Features
✅AMS P3 Patented UV Cassette USA Make.
✅ Powerful stream feeder to handle stocks from 60gsm to 450 Gsm.
✅ User adjustable double Sheet Detection Device.
✅ Cross Sheet detector
✅ Maintenance free Varnish replenishment Pump.
✅ Automatic Delivery Stacker
✅ Water Chiller included in this Machine.
✅ Progressive Blower for cooling.
✅ Due to Chain Delivery low GSM Paper Transportation is very smooth in Stacker.
✅ Max Speed 5000 SPH.
✅ 3 Nos. twin Tube IR (Infrared) Lamp of 3 KW each, total power – 9 KW.
✅ Hot Air Dryer with 2 KW Heating System.
✅ Anilox coater system (Ceramic Roller are optional) with Doctor Chamber blade.
✅ Plate Clamps suitable for Cut Blanket and Polymer Plates.
✅ High Quality Irradiator with extruded Aluminum Reflectors
✅ Chain delivery with gripper pads.
✅ Reflector housing for UV. Lamps.
✅ Efficient air cooling systems with high pressure Blower.
✅ UV Lamp intensity control EPS and steeples ITACIA Product.
✅ Full PLC Control with digital touch screen human machine interface.
✅ Machine dimension : L – 20 Feet x W- 5 Feet x H- 5 Feet.
✅ New Innovated smart vacuum roller delivery.
Technical Specification
Model-APL UV 2232
Maximum Sheet Size-571 mm x 825 mm
Minimum Sheet Size-300 mm x 400 mm
Max. Coating Area-546 mm x 813 mm
Max. Speed-8000 sheets per hour
Plate Size-813 mm x 640 mm
Pile Height of Feeder-850 mm
Pile Height of Delivery-1050 mm
Plate Cylinder Diameter-280 mm (with blanket)
Imp. Cylinder Diameter-280 mm
Space Requirement-L-8550 x W-2600 x H-2000
Machine Dimension-L-7925 x W-1829 x H-2000
Paper Thickness-80 to 400 gsm
Power (Coater)-41 4 KW
Power (UV Dryer)-9 KW (Single Lamp)
Weight-6 Ton
SPECIFICATIONS:
UV Lamp
✅Power of the lamp will be 400 watts per inch.
✅ Intensity of UV light will be 365NM and 500MJ2.
✅ Medium pressure mercury lamp with ceramic end.
✅ Silica quartz tube with tungsten.
✅ Water Chiller
✅ Water chilling system
✅ 14 Degree Celsius water will be circulated in reflector
✅ Control panel for water chiller
✅ Complete system for efficient cooling
✅ Sync. With UV control panel
EPS Inverter
✅ Warm up time Is less which means less start time of UV lamp
✅ Standby @ 10% mode, make more lamp life
✅ 10 to100% intensity of lamp infraction of seconds
✅ Sync with press speed (Lamp intensity can vary with press speed)
✅ Less Power consumption
✅ No humming gas transformer and other electrical components are less inside the panel
✅ Step-less regulation of lamp form 10-100%.
✅ Self diagnostics Protection technology for minor electrical faults
✅ Less Heat inside the panel
